| حجم اللوحة: | 1500x800 ملم | سمك اللوحة: | 5 ~ 25 ملم |
|---|---|---|---|
| قوة اللكم: | 1000/ 1200 كيلو نيوتن | قوة العلامات: | 800/ 1000 كيلو نيوتن |
| التصنيع باستخدام الحاسب الآلي أم لا: | CNC | محطات الموت: | 4 |

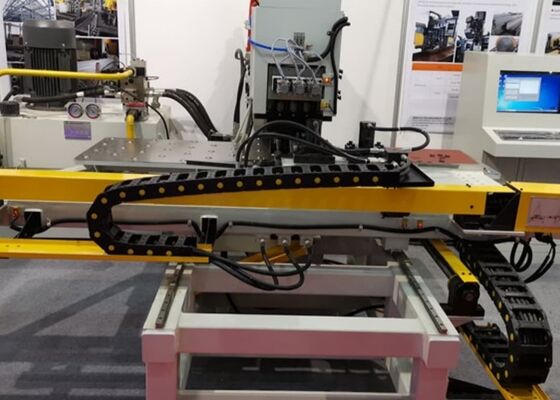

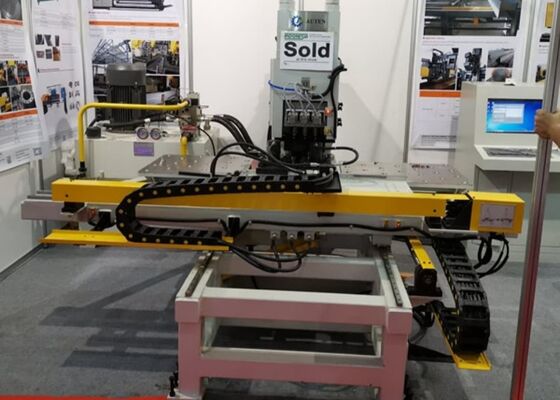

Steel Tower Use CNC Plate Punching Marking And Drilling Machine 1000/1200KN Punching Force
Applicable industry:
A highly specialized CNC machine engineered for the punching and marking of steel plates in the steel tower industry. It is also employed for similar punching and marking operations in a range of other industries.
Main Component:
This machine is comprised of the main unit, worktable, hydraulic clamping system, drilling module, punching module, hydraulic power unit, electrical control panel, and an automated lubrication system.
Specifications:
| Model | BNCZ100 | |
| Max size of work piece (mm) | 1500*800 | |
| Max. punching diameter (mm) | Φ26 | |
| Max. drilling diameter (mm) | Φ50 | |
| Taper of drilling spindle | / | |
| Plate thickness (mm) | Punching | 5～25 (Q235) |
| Drilling | 40 | |
| Punching force (kN) | 1000/1200 | |
| Marking force (kN) | 800/1200 | |
| Min. distance between hole and plate edge (mm) | Punching | 25 |
| Drilling | Depends on hole diameter | |
| Character size(mm) | 14*10*19 | |
| Qty. of character | 12 | |
| Die-stations | 4 | |
| Feeding speed of drilling (mm/min) | 25~280 | |
| Stroke of drilling spindle(mm) | 180 | |
| Rotation speed of drilling spindle(r/min) | 120~560 | |
| Programming mode | Command programming, Auto CAD drawing or layout software | |
| Overall dimensions L*W*H (m) | 3.2*3*2.6 | |
Product feature:
1. The machine frame is fabricated using C-type plate welding, ensuring superior rigidity while providing a spacious work area. It features three die stations—two for punching and one for marking—equipped with automatic die station switching. The clamping system is versatile, capable of securing a wide range of workpieces, and incorporates a reference block for precise alignment. The workpiece is supported by a roller-ball worktable. The X and Y axes are driven by servo motors and ball-screw systems, with position feedback monitored by a PLC, enabling automated control of the punching operations. Operators can input the workpiece program, which can be saved and reused for future processing tasks.
2. The machine integrates CNC technology and servo motor-driven feeding, enhancing efficiency while ensuring consistent precision for the workpieces.
3. Essential functional components are designed with a modular construction, simplifying maintenance and repair procedures.
4. It is capable of executing both punching and marking operations on a single steel plate.
5. The system offers intuitive programming, supporting CAD files and enabling seamless integration with programs generated by lofting software. It is fully compatible with TEKLA lofting software files, including the NC1 format.
6. The machine is equipped with a built-in self-diagnostic fault detection system.
7. The X and Y axes are powered by servo motors, ball screws, and linear guides, ensuring exceptional accuracy.
8. The main structure is built from a C-shaped welded steel plate framework, providing superior rigidity and an expansive operational area.
9. The machine is equipped with three workstations, including one specifically for marking, with automatic station switching capability.
10. The clamping system is designed to accommodate workpieces with varying thicknesses. A reference zero block is used to stabilize the workpiece on a ball-bearing worktable.
11. The X and Y axes are powered by servo motors, ball screws, and high-precision linear guides, controlled by a dual-axis CNC system to ensure accurate positioning during punching operations.
12. The entire machining process is fully automated, requiring the operator to simply enter the workpiece drawing into the computer.
Machine details:
This specialized metalworking system is specifically designed to carry out punching, marking, and drilling operations on steel plates utilized in the steel tower manufacturing industry. It ensures exceptional machining precision, adhering to stringent tolerance standards and surface finish requirements. In addition to the steel tower sector, this versatile equipment provides dependable punching, drilling, and marking capabilities for metal plates across a diverse range of industries. It consistently delivers high operational throughput and accurate processing for various metal components, thereby optimizing workflow efficiency and enhancing product quality in multiple industrial applications.
