تفاصيل المنتج:
شروط الدفع والشحن:
|
| الأعلى. عرض لوحة المعالجة: | 1000 ملم | تجهيز سمك اللوحة: | 2-100 مم |
|---|---|---|---|
| طول لوحة المعالجة: | 100 ملم ~∞ | دقيقة. الشغل: | 50x50x2mm |
| Max. الأعلى. Loading Capacity قدرة التحميل: | 500 كلغ | قوة الآلة: | 28kw |
| محرك التغذية: | 2 | سرعة التغذية: | 10～4000 مم/دقيقة |

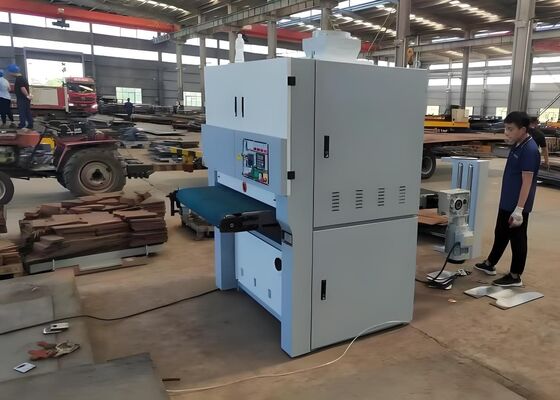

500kgs Max. Loading Capacity Model BP1000 Plate Polishing Machine 28KW Machine Power
Equipment Purpose:
Plate polishing machine is mainly used for polishing of laser cutting and plasma cutting.
Product Configuration:
| No. | Model | BP1000 |
| 1 | Max. processing plate width | 1000mm |
| 2 | Processing plate thickness | 2-100mm |
| 3 | Processing plate length | 100mm～∞ |
| 4 | Min. workpiece | 50x50x2mm |
| 5 | Max. loading capacity | 500kgs |
| 6 | Machine power | 28KW |
| 7 | Feed motor | 2 |
| 8 | Feeding speed | 10～4000 mm/min |
| 9 | Abrasive belt deburring slag, burrs | Height less than 1.5mm |
| 10 | Cartridge dust collector | 5.5KW |
| 11 | Cartridge dust collector size | 1000x1000x2100mm |
| 12 | Machine dimensions | 2450x1700x2150mm |
Application industries:
Electric power towers, communication towers, power fittings, steel structures, storage shelves, etc.
Equipment features:
1. Automatic continuous feeding, unlimited length, improve production efficiency and reduce production costs.
2. CNC control is adopted, operation information and status are fed back in time, and the operation is simple.
3. CNC PLC and touch screen control are adopted, one-button start and stop are adopted, and the operation is simple and convenient.
4. Pneumatic tensioning device, stable operation, ensures the service life of the abrasive belt.
5. The equipment is simple and convenient to operate, safe and reliable in performance, and high in production efficiency.
A plate polishing machine is primarily used for the polishing of metal plates that have been processed through laser cutting or plasma cutting methods. These machines are designed to smooth and refine the surface of the metal plates, removing any burrs, rough edges, or oxidation marks that may have resulted from the cutting processes. By providing a high-quality finish, plate polishing machines improve the aesthetic appearance of the plates and enhance their overall performance in subsequent operations or applications. This type of machinery is widely used in industries such as metal fabrication, manufacturing, and automotive, where precision and surface quality are crucial.
