تفاصيل المنتج:
شروط الدفع والشحن:
|
| الحد الأقصى لحجم قطعة العمل (مم): | 1500*800 | الأعلى. قطر التثقيب (مم): | Φ26 |
|---|---|---|---|
| الأعلى. قطر الحفر (مم): | Φ50 | تفتق المغزل الحفر: | بي تي50 |
| قوة اللكم (كيلو نيوتن): | 1000/1200 | قوة الوسم (كيلو نيوتن): | 800/1200 |
| حجم الحرف (مم): | 14*10*19 | الكمية. من الطابع: | 12 |

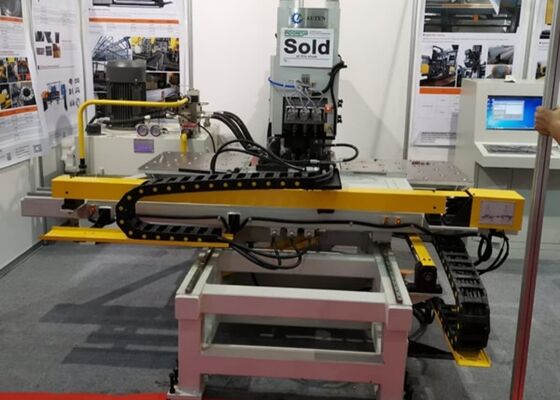

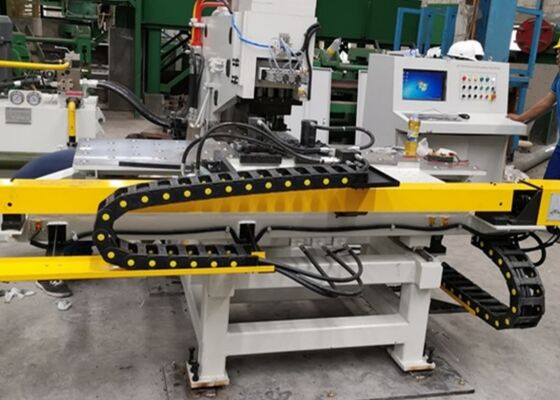

Steel Structure Fabrication CNC Hydraulic Plate Punching Machine Construction Steel Plate Processing
Product Introduction:
The CNC Hydraulic Marking and Punching or Drilling Machine is equipped with a fixed piston and cylinder, enabling both four-way and eight-way movement. This design ensures smooth operation and long-term stability. The system is optimized to reduce punching power under partial load conditions, effectively lowering operating pressure. As a result, the machine significantly improves both stability and reliability. With prolonged use, it maintains high precision and offers an extended service life.
Product Configuration:
| Model | BNHD120 | |
| Max size of work piece (mm) | 1500*800 | |
| Max. punching diameter (mm) | Φ26 | |
| Max. drilling diameter (mm) | Φ50 | |
| Taper of drilling spindle | BT50 | |
| Plate thickness (mm) | Punching | 5～25 (Q235) |
| Drilling | 40 | |
| Punching force (kN) | 1000/1200 | |
| Marking force (kN) | 800/1200 | |
| Min. distance between hole and plate edge (mm) | Punching | 25 |
| Drilling | Depends on hole diameter | |
| Character size(mm) | 14*10*19 | |
| Qty. of character | 12 | |
| Die-stations | 4 | |
| Feeding speed of drilling (mm/min) | 0~5000 | |
| Stroke of drilling spindle(mm) | 350 | |
| Rotation speed of drilling spindle(r/min) | 30~3000 | |
| Programming mode | Command programming, Auto CAD drawing or layout software | |
| Overall dimensions L*W*H (m) | 3.3*3.2*3 | |
Product feature:
1. The machine frame is constructed using C-type plate welding, ensuring superior rigidity and providing an expansive operational workspace. It is equipped with three die stations, one of which is dedicated to marking, and includes automatic die station switching. The clamping system is versatile, accommodating various workpieces and using a zero baffle as the reference point, with the workpiece supported by a rolling-ball worktable. The X and Y axes are powered by servo motors and ball screws, while the dual-axis CNC system governs the punching position, enabling fully automated machining. Operators can input workpiece dimensions into the computer, allowing the system to retrieve and reuse programs for future operations.
2. The machine employs CNC technology with servo motor-driven feeding, ensuring optimal efficiency and consistent workpiece precision.
3. Essential functional components are designed with a modular assembly approach, facilitating easier maintenance and repairs.
4. The machine is capable of performing punching, marking, and drilling operations on a single plate.
5. The drilling unit is equipped with features such as rapid descent, slow feed during operation, and quick return feeding, all of which improve operational efficiency.
6. The machine provides intuitive programming, allowing the direct input of hole diameter and position into the computer. It also supports programs generated by CAD/CAM software or those produced by lofting software.
7. The hydraulic station utilizes a dual-pump, single-motor design with a water cooling system and sleeve-type couplings for all pipelines. The hoses and coupling seals are sourced from internationally recognized suppliers.
8. The X and Y axes are powered by servo motors, ball screws, and linear guides, guaranteeing outstanding precision.
9. The system includes a self-diagnostic function that detects and reports faults.
10. The design minimizes the physical strain on operators.

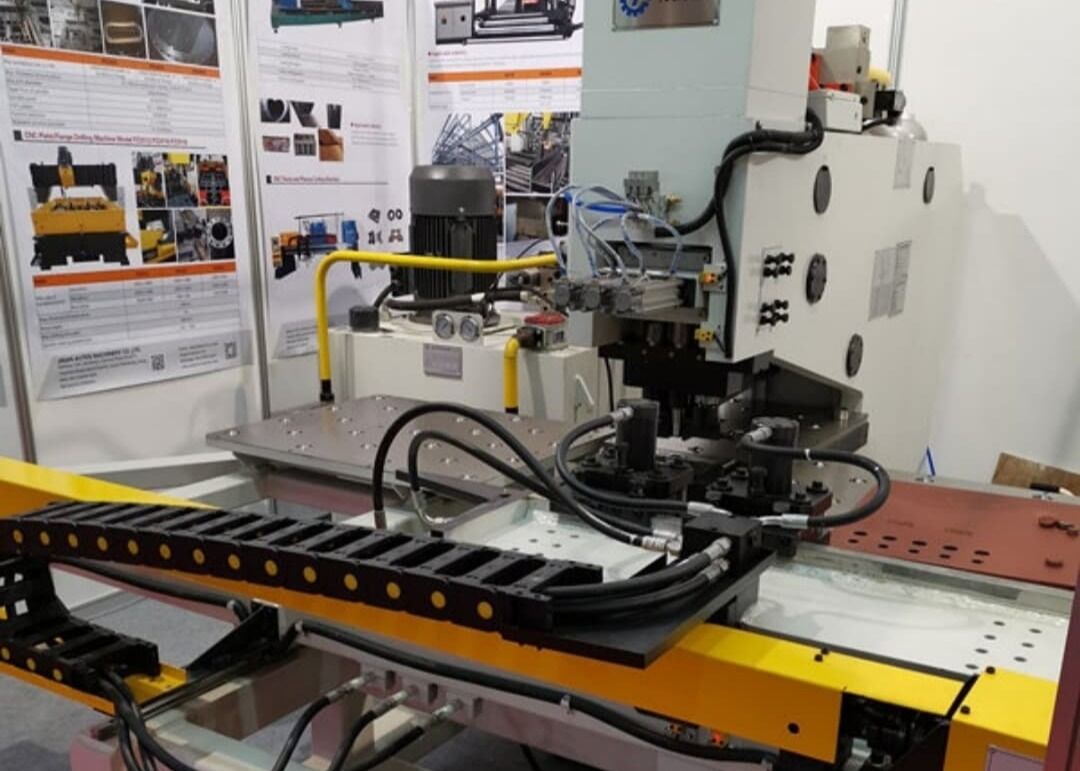

Machine details:
This specialized metalworking system is meticulously designed to perform punching, marking, and drilling operations on steel plates within the steel tower manufacturing industry. It provides exceptional machining accuracy, meeting stringent tolerance and surface finish requirements. In addition to its primary use in the steel tower sector, this versatile equipment consistently executes punching, drilling, and marking operations on metal plates for a broad spectrum of industrial applications. It ensures enhanced operational efficiency and precise processing of various metal workpieces, streamlining workflows and improving product quality across diverse industries.
