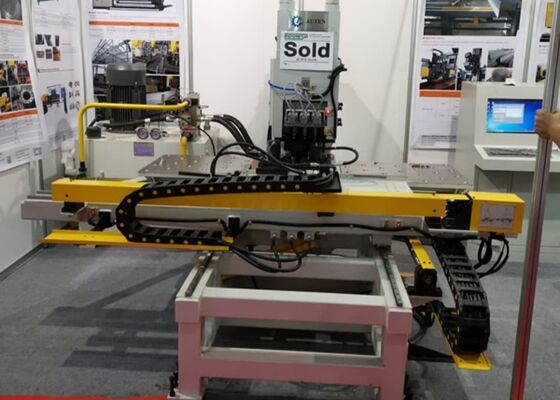

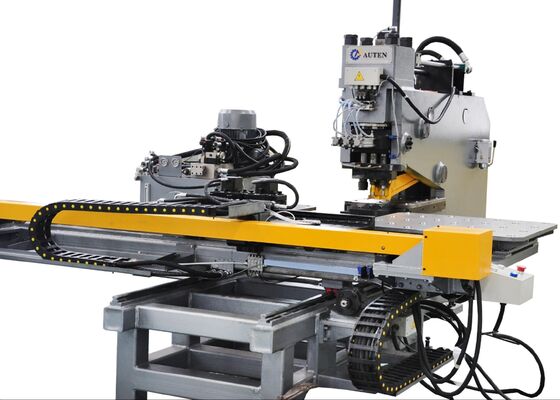

1000/1200KN Punching Force CNC Plate Steel Metal Punching Drilling Machine 12 Characters
Applicable industry:
The CNC plate punching and drilling machine is specially engineered for punching, marking, and drilling processes on steel plates within the steel tower manufacturing sector. Furthermore, it finds extensive application in performing punching, drilling, and marking operations on metal plates across a broad spectrum of other industrial fields.
Specifications:
| Model | BNC100 | BNCZ100 | BNHD120 | |||
| Max size of work piece (mm) | 1500×800 | |||||
| Max. punching diameter (mm) | Φ26 | |||||
| Max. drilling diameter (mm) | / | Φ50 | ||||
| Taper of drilling spindle | / | / | BT50 | |||
| Plate thickness (mm) | Punching | 5～25 (Q235) | ||||
| Drilling | / | 40 | ||||
| Punching force (kN) | 1000/ 1200 | |||||
| Marking force (kN) | 800/ 1000 | |||||
| Min. distance between hole and plate edge (mm) | Punching | 25 | ||||
| Drilling | / | Depends on hole diameter | ||||
| Character size(mm) | 14×10×19 | |||||
| Qty. of character | 12 | |||||
| Die-stations | 3 | 4 | ||||
| Feeding speed of drilling (mm/min) | / | 25~280 | 0~5000 | |||
| Stroke of drilling spindle(mm) | / | 180 | 350 | |||
| Rotation speed of drilling spindle(r/min) | / | 120~560 | 30~3000 | |||
| Programming mode |
Command programming, Auto CAD drawing or layout software |
|||||
| Overall dimensions L×W×H (m) | 3.2×3×1.9 | 3.2×3×2.6 | 3.3×3.2×3 | |||
Product feature:
1. The frame of the CNC channel steel punching and marking machine is constructed via C-type plate welding, delivering outstanding structural rigidity and ample operational clearance. Equipped with three die stations (one dedicated to marking operations), the equipment supports automatic die station switching to enhance workflow efficiency. Its clamping system boasts versatile adaptability to a broad range of workpieces, adopting a zero-reference baffle as the positioning datum, while the workpiece is supported by a ball-bearing worktable to guarantee smooth handling. The X and Y axis movements are driven by servo motors and transmitted through high-precision ball screws, with a Programmable Logic Controller (PLC) managing punching position adjustment—thus realizing full automation of the entire machining process. Upon the operator inputting the workpiece program, it can be stored, retrieved, and repeatedly utilized for cyclic production tasks.
2. The CNC steel drilling machine integrates Computer Numerical Control (CNC) technology and servo motor-driven feeding mechanisms, ensuring superior operational efficiency and consistent workpiece precision.
3. Core functional components adopt a modular design, enabling convenient maintenance and streamlined repair procedures.
4. The CNC metal plate punching and marking machine supports the integration of punching, marking, and drilling processes on a single metal plate, realizing multi-process consolidation within a single operational cycle.
5. The drilling machine unit integrates core functional capabilities encompassing rapid lowering, slow working feed, and fast retraction—all of which significantly boost operational efficiency in practical application scenarios.
6. Equipped with an intelligent fault self-diagnosis system, the equipment allows for timely detection of operational abnormalities, enabling proactive maintenance measures and safeguarding stable production continuity.
7. The programming workflow is engineered with user-centric usability in mind: operators can input hole diameters, hole position coordinates, and workpiece batch quantities into the control system. Furthermore, it supports the deployment of programs generated by lofting software, or enables direct CAD/CAM file conversion to ensure seamless program execution.
Machine details:
This professional metal processing equipment is primarily designed for punching, marking, and drilling operations on steel plates within the steel tower manufacturing sector. It delivers exceptional machining precision, adhering to stringent tolerance specifications and surface finish criteria. Beyond the steel tower industry, this multi-functional equipment also provides reliable punching, drilling, and marking solutions for metal plates across a diverse range of industrial domains. It sustains consistent operational efficiency and processing accuracy for all types of metal workpieces, thereby improving workflow productivity and elevating product quality across various industrial applications.
