تفاصيل المنتج:
شروط الدفع والشحن:
|
| وظائف: | اللكم ، العلامات ، قطع | حجم الزاوية （مم）: | ∟40 × 40 × 3 ～∟100 × 100 × 10 |
|---|---|---|---|
| الأعلى. طول فارغ (م): | 12 | الأعلى. طول الانتهاء (م): | 10 |
| الأعلى. اللكم (ديا. х ثي.) (مم): | φ26 × 10 （المادة ： Q345 510n/mm2） | اللكمات لكل جانب: | 2 |
| قوة اللكم (kn: | 630 | قوة العلامات (KN): | 630 |
| قوة القطع (KN): | 1000 |
Applicable Industry:
The machine is the special equipment used for angle steel punching, marking & shearing in the field of angle steel tower industry.
Specifications:
| Model | JNC1010 |
| Functions | Punching, marking, cutting |
| Angle size(mm) | ∟40×40×3～∟100×100×10 |
| Max. length of blank (m) | 10 |
| Max. Punching (dia. х thi.) (mm) | Φ26×10(Material:Q345 510N/mm2) |
| Punches per side | 2 |
| Punching force (kN) | 630 |
| Marking force (kN) | 630 |
| Cutting force (kN) | 1000 |
| Group of Marking letters | 4 |
| Number of letters per group | 12 |
| Dimension of letter (mm) | 14×10×19 |
| Cutting mode | Single blade cutting |
| CNC axes | 3 |
| Feeding speed of angle (m/min) | 80 |
| Cooling method of hydraulic system | Water cooling |
| Processing precision | Accordance with GB2694 |
| Program function | Input by keyboard and USB interface |
| Dimension(mm) | 28000×6500×2200 |
Product Composition:

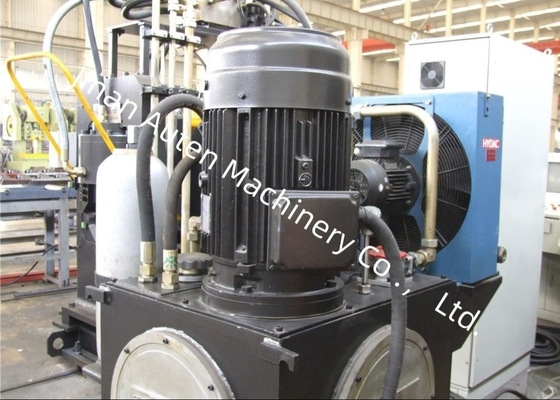

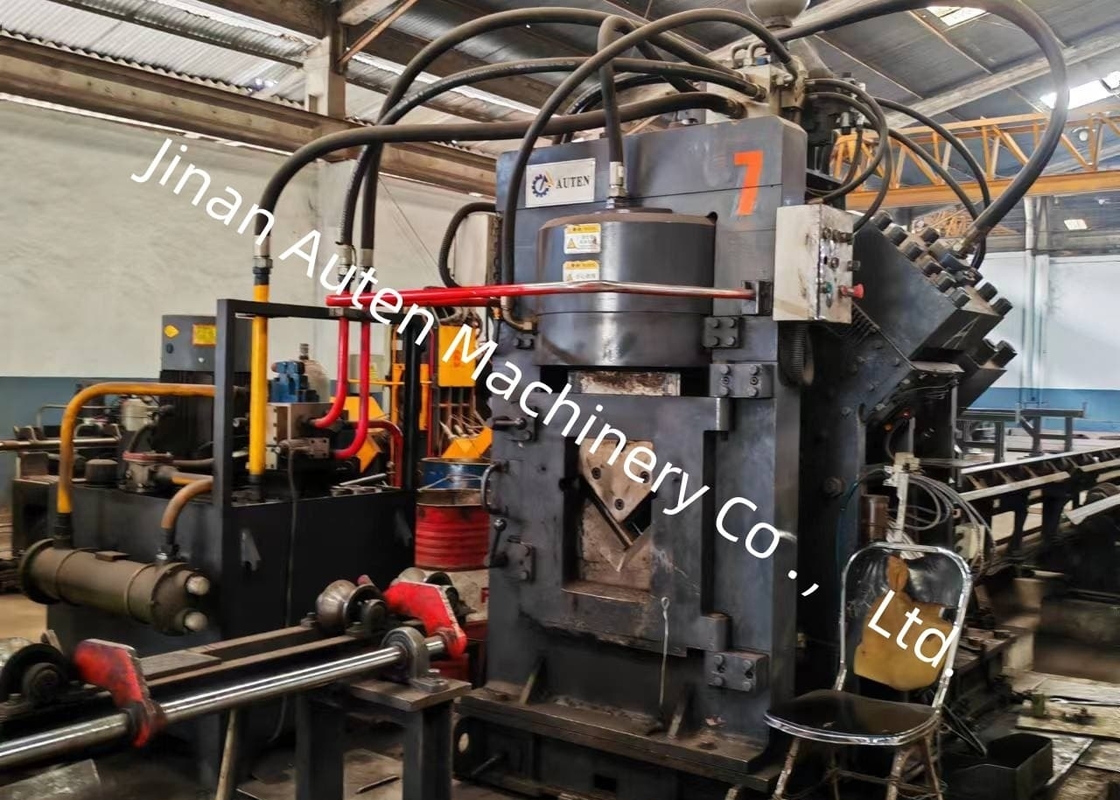

This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.
Product Feature:
1. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision. Key hydraulic, pneumatic and electric parts all imported.
2. There are three sets of punch and die on each side which can install three kinds of punches with different diameters. Three sets of moulds can move altogether controlled by PLC to change the punching back mark.
3. Computer with Chinese/English interface, easy operation, and can display the drawing of workpiece. Easy programming and can directly use the program data made by lofting software. Only need to input size of workpiece, diameter of holes, back mark and quantity of workpiece when edit program.
4. CNC infeed carriage is driven by servo motor. The photoelectric encoder feeds back the information. Closed loop control to ensure high positioning precision.
5. All marking, punching and shearing in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.
We are your professional partner in the field of Angle steel processing for power infrastructure. Our automated equipment is operated through a simple numerical control interface and can efficiently process high strength Angle steel, saving you time and cost. We offer customized solutions to ensure the success of your project.
Transform the manufacturing method of power transmission towers with our new-generation Angle steel processing system. Our technology is specifically designed for outstanding toughness and precision, completely transforming the way you manage large, high-strength components. The integrated intelligent control system offers unparalleled ease of operation and data management capabilities, significantly shortening the production cycle and reducing the total cost of ownership. Join hands with us to lay a solid foundation for the future energy infrastructure with outstanding manufacturing.
