تفاصيل المنتج:
شروط الدفع والشحن:
|
| وظائف: | اللكم ، العلامات ، قطع | حجم الزاوية （مم）: | ∟40 × 40 × 3 ～∟140 × 140 × 12 |
|---|---|---|---|
| الأعلى. طول فارغ (م): | 12 | الأعلى. طول الانتهاء (م): | 10 |
| الأعلى. اللكم (ديا. х ثي.) (مم): | φ26 × 12 （المادة ： Q345 510n/mm2） | اللكمات لكل جانب: | 2 |
| قوة اللكم (KN): | 630 | قوة العلامات (KN): | 630 |
| قوة القطع (KN): | 1800 |
Applicable Industry:

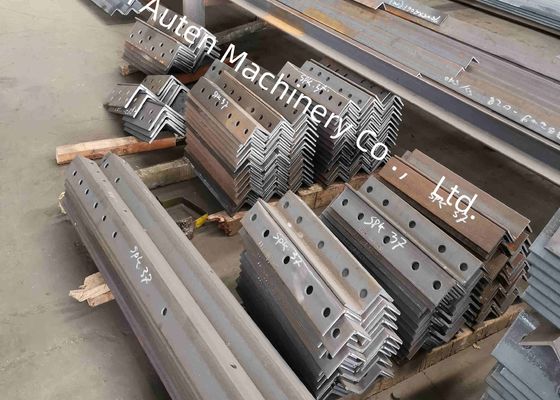

The machine is the special equipment used for angle steel punching, marking & shearing in the field of angle steel tower industry.
Specifications:
| Functions | Punching, marking, cutting |
| Angle size(mm) | ∟40×40×3～∟140×140×12 |
| Max. length of blank (m) | 12 |
| Max. length of finished (m) | 10 |
| Max. Punching (dia. х thi.) (mm) | Φ26×12(Material:Q345 510N/mm2) |
| Punches per side | 2 |
| Punching force (kN) | 630 |
| Marking force (kN) | 630 |
| Cutting force (kN) | 1800 |
| Group of Marking letters | 4 |
| Number of letters per group | 12 |
| Dimension of letter (mm) | 14×10×19 |
| Cutting mode | Single blade cutting |
| CNC axes | 3 |
| Feeding speed of angle (m/min) | 80 |
| Cooling method of hydraulic system | Water cooling |
| Processing precision | Accordance with GB2694 |
| Program function | Input by keyboard and USB interface |
| Dimension(mm) | 28000×6500×2200 |
Product Composition:

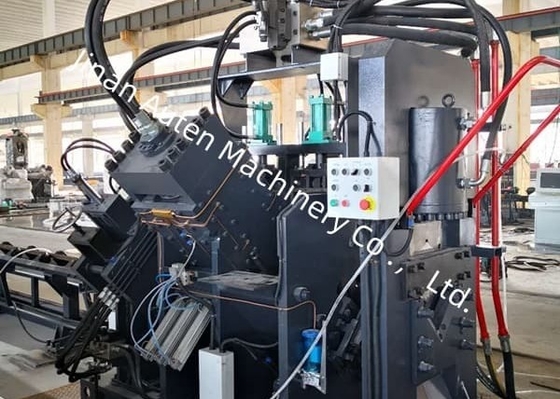

This machine is mainly composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, punching unit, marking unit, cutting unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems etc.
Product Feature:
1. Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision. Key hydraulic, pneumatic and electric parts all imported.
2. There are three sets of punch and die on each side which can install three kinds of punches with different diameters. Three sets of moulds can move altogether controlled by PLC to change the punching back mark.
3. Computer with Chinese/English interface, easy operation, and can display the drawing of workpiece. Easy programming and can directly use the program data made by lofting software. Only need to input size of workpiece, diameter of holes, back mark and quantity of workpiece when edit program.
Our professional Angle steel integrated processing equipment helps power tower manufacturers efficiently handle large and high-strength Angle steel.
This integrated solution combines automatic punching, precise marking and efficient shearing, comprehensively optimizing the production process of all connecting parts from the tower body to the support. It significantly enhances assembly accuracy, connection reliability and structural durability, ensuring that the transmission tower maintains excellent stability and reliability even in extremely harsh environments.
We are willing to be your reliable partner in power infrastructure manufacturing, safeguarding your solid projects.
